Artificial Board CNC Six Side Boring Machine With Single Drill For Making Furniture HB62G

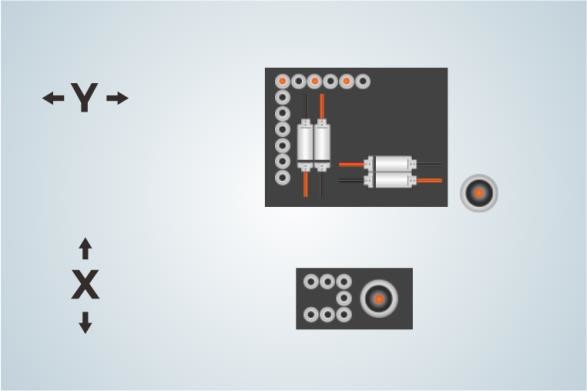

Special drill band design to satisfy various production:
Servo control for all axis to have accurate machining:
With high speed 3.0 system for efficiency production:
Application
1. Woodwork Drilling
2. Kitchen cabinets Drilling
3. Wardrobe panel drilling
4. Office furniture Drilling
Specifications:
| Machine | HOLD-HB62G |
| Efficiency | 80-100pieces |
| Length of board | 200-2800mm |
| Width of board | 50-1200mm |
| Thickness of board | 9-40mm |
| X/Y/Z MAX.Speed | 120/80/30m/min |
| Power of main spindle | 3.5KWx2 |
| Speed of main spindle | 18000rpm |
| Upper vertical drill | 12 |
| Upper horizontal drill | X: 4+ Y: 4 |
| Bottom vertical drill | 7pcs |
| Total power | 20KW |
| Size of machine | |
| | Taking area:16.25 |
| Screen | All-in-one machine/China brand |
| | |
| Scan | China brand |
| Relay | China brand |
| Sensor | Autonics/Korea |
| High-voltage apparatus | Schneide/France |
| Pneumatic | Magnetic valve/EMC |
| Drilling center | China brand |
| Servo motor | Syntec/Taiwan |
| Reduction box | China |
| Control system | LNC |
| Frequency | Delta |
| | |
| Sliding block | Rouist/Germany |
| Ball screw | TBI/Taiwan |
| Gear rack | China |
| Protection of borehole depth | Yes. Protection Software |
| Grip self-cleaning | yes |
| Operating COM system | Syntec+ China designe |
| Syetem application | Windows |
| Soot blower of bottom drill | yes |
| Mainpulator grab and position | One time |
| Hole is action | Fission action |
| Acting | Principle of proximity |
| Double groove | First top and later bottom |
| Action of machining hole position | Nearest |
| Remove alarm | No alarm after removing automatically; some requires resetting |
| Characteristic | 6 sides one acting |
| Rectangular steel construction |
| Manual scan |
| Double clamp |
| |
| X/Y rack,Z lead screw drive |
| Servo control |
About our company
One-stop solution for
interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
